Drawing in NDC¶

Similar to the Framebuffer code, this is a notebook in which we will only use software to draw pictures of a framebuffer. We use Normalized Device Coordinates instead of screenspace, and by the end, we will make an animation.

import warnings

import IPython.display
import moviepy
import numpy as np

import modelviewprojection.mathutils2d as mu2d
import modelviewprojection.softwarerendering as sr

# turn warnings into exceptions
warnings.filterwarnings("error", category=RuntimeWarning)

Make Framebuffer¶

Like in the Framebuffer notebook, we initialize a framebuffer in software.

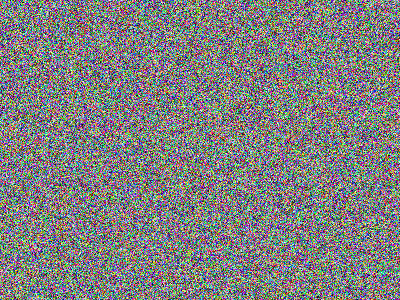

# Show initial random framebuffer
fake_fb: sr.FrameBuffer = sr.FrameBuffer(width=400, height=300)
fake_fb.show_framebuffer()

images/c465ff75a591db3ed7637cb06ad86343beb9828d699b1f7a373c6875393624b0.png

Clear Framebuffer¶

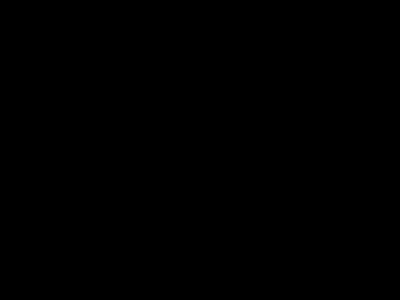

We clear it so that we have a blank slate.

# Clear to black and show
fake_fb.clear_framebuffer()
fake_fb.show_framebuffer()

images/b2b12e2f72ed05c7af9b37a6a6301e19d3e59aa147e971124742c449cfba548a.png

Problem 2¶

Make a new picture below where the triangle is translated 0.3 units in NDC to the left

Create function from NDC to screenspace¶

Create a function to convert from NDC to screen space. We compose 4 functions to achieve this

First, translate x to the right one unit, y up on unit, to make the bottom left of the NDC region be at (0,0)

Second, since the NDC square is two units wide, scale by 1/2, to make it have a width of 1, and a height of 1.

Third, scale by the width and height of the framebuffer.

Fourth, translate -1/2 and -1/2, to make (0,0) of NDC map to the center of the pixel at (0,0)

Inspired by “Fundamentals of Computer Graphics, Third Edition”, by Shirley and Marshner, page 60

ndc_to_screen: mu2d.InvertibleFunction = mu2d.compose(
    [
        mu2d.translate(mu2d.Vector2D(-0.5, -0.5)),
        mu2d.scale(fake_fb.width, fake_fb.height),
        mu2d.scale(0.5, 0.5),
        mu2d.translate(mu2d.Vector2D(x=1.0, y=1.0)),
    ]
)

Create NDC data for triangle¶

Create a list of Vectors to represent the three vertices of the triangle.

# Example: draw a white triangle

triangle_in_NDC: list[mu2d.Vector] = [
    mu2d.Vector2D(0.0, 0.0),
    mu2d.Vector2D(0.2, 0.0),
    mu2d.Vector2D(0.2, 0.2),
]

Convert the NDC Vectors to Screenspace¶

For each vector, apply the function

triangle_in_screen: list[mu2d.Vector] = [
    ndc_to_screen(x) for x in triangle_in_NDC
]
print(triangle_in_screen)

[Vector2D(x=199.5, y=149.5), Vector2D(x=239.5, y=149.5), Vector2D(x=239.5, y=179.5)]

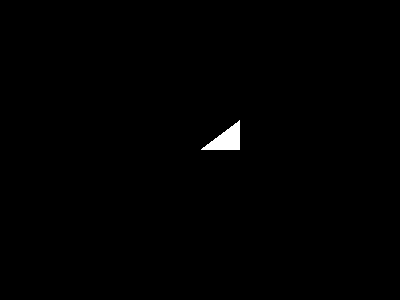

fake_fb.clear_framebuffer()
fake_fb.draw_filled_triangle(
    triangle_in_screen[0],
    triangle_in_screen[1],
    triangle_in_screen[2],
    color=(255, 255, 255),
)
fake_fb.show_framebuffer()

images/8f20bad3055b643a2641a11584464deff1dadb2a9cd84ea8649fd44b7b602924.png

Move the Triangle in NDC¶

Now, we want to make the triangle move to a different position. We will use compose to first translate the triangle by 0.5 units of NDC up, and then take the result and convert it from NDC to screenspace

move: mu2d.InvertibleFunction = mu2d.translate(mu2d.Vector2D(0, 0.5))

triangle_in_screen = [
    mu2d.compose([ndc_to_screen, move])(x) for x in triangle_in_NDC
]
print(triangle_in_screen)

[Vector2D(x=199.5, y=224.5), Vector2D(x=239.5, y=224.5), Vector2D(x=239.5, y=254.5)]

fake_fb.clear_framebuffer()
fake_fb.draw_filled_triangle(*triangle_in_screen, color=(255, 255, 255))
fake_fb.show_framebuffer()

images/52656b63f8084ae7238607551bd2aaa08002660966a24fbe012ab63808863713.png

frames = []

sixty_fps_times_2_sec = 120

# Create 10 frames with simple animation
for i in range(sixty_fps_times_2_sec):
    fake_fb.clear_framebuffer()
    move: mu2d.InvertibleFunction = mu2d.translate(
        mu2d.Vector2D(0, 0.5 * (np.sin(np.pi / 60.0 * float(i))))
    )

    triangle_in_screen = [
        mu2d.compose([ndc_to_screen, move])(x) for x in triangle_in_NDC
    ]
    fake_fb.draw_filled_triangle(*triangle_in_screen, color=(255, 255, 255))

    frames.append(fake_fb.framebuffer)

Now that we have the frames, we just need to save them to a video. The details of how this works is a black box to use, it doesn’t really matter for our understanding.

np_frames = [np.array(img) for img in frames]

frames_np = [np.array(img) for img in frames]
clip = moviepy.ImageSequenceClip(frames_np, fps=60)
clip.write_videofile("animation.mp4", codec="libx264")

IPython.display.Video("animation.mp4", embed=True)

MoviePy - Building video animation.mp4.
MoviePy - Writing video animation.mp4

frame_index:   0%|                                                                                             | 0/120 [00:00<?, ?it/s, now=None]

frame_index:  62%|███████████████████████████████████████████████████▉                               | 75/120 [00:00<00:00, 567.99it/s, now=None]

MoviePy - Done !
MoviePy - video ready animation.mp4
